Overview:

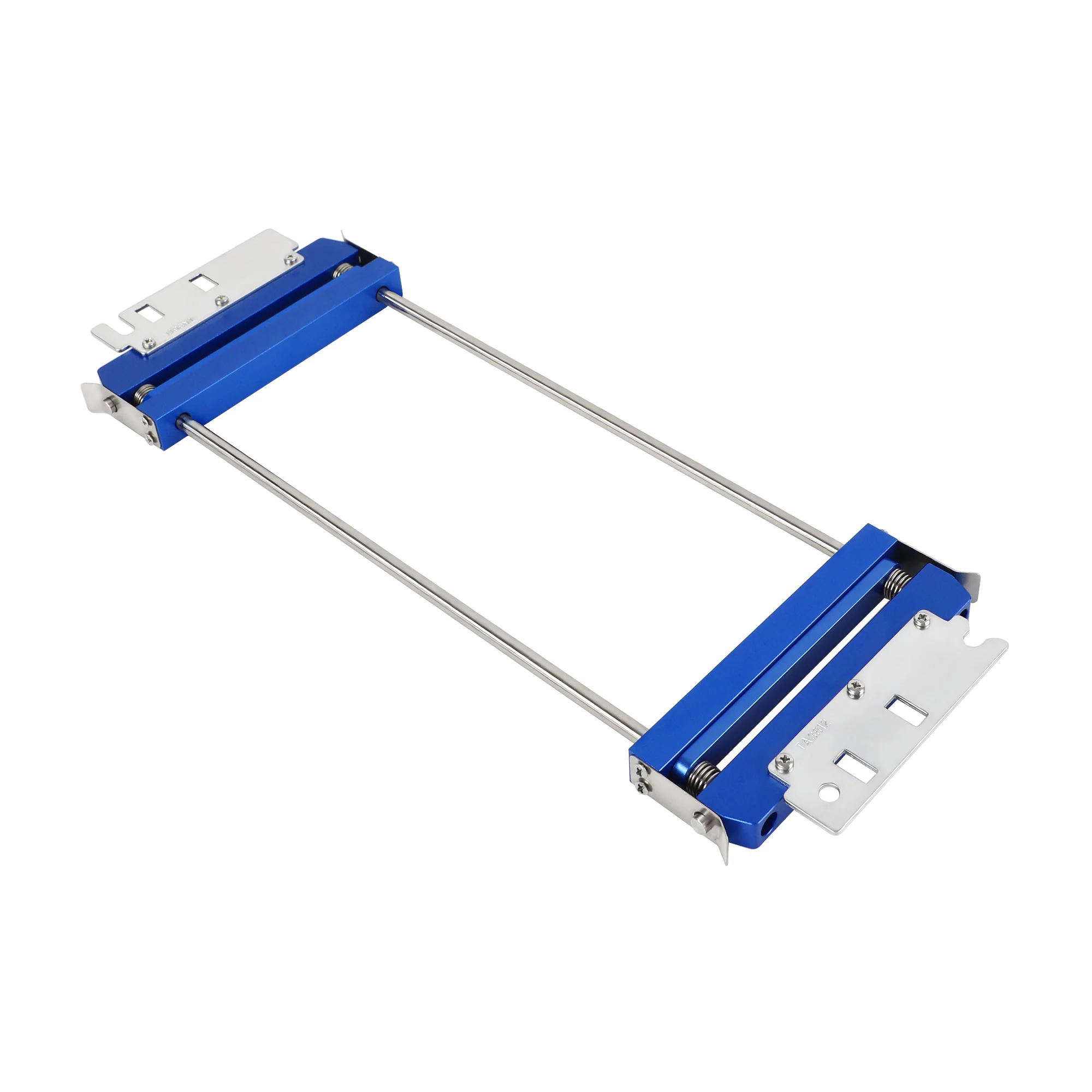

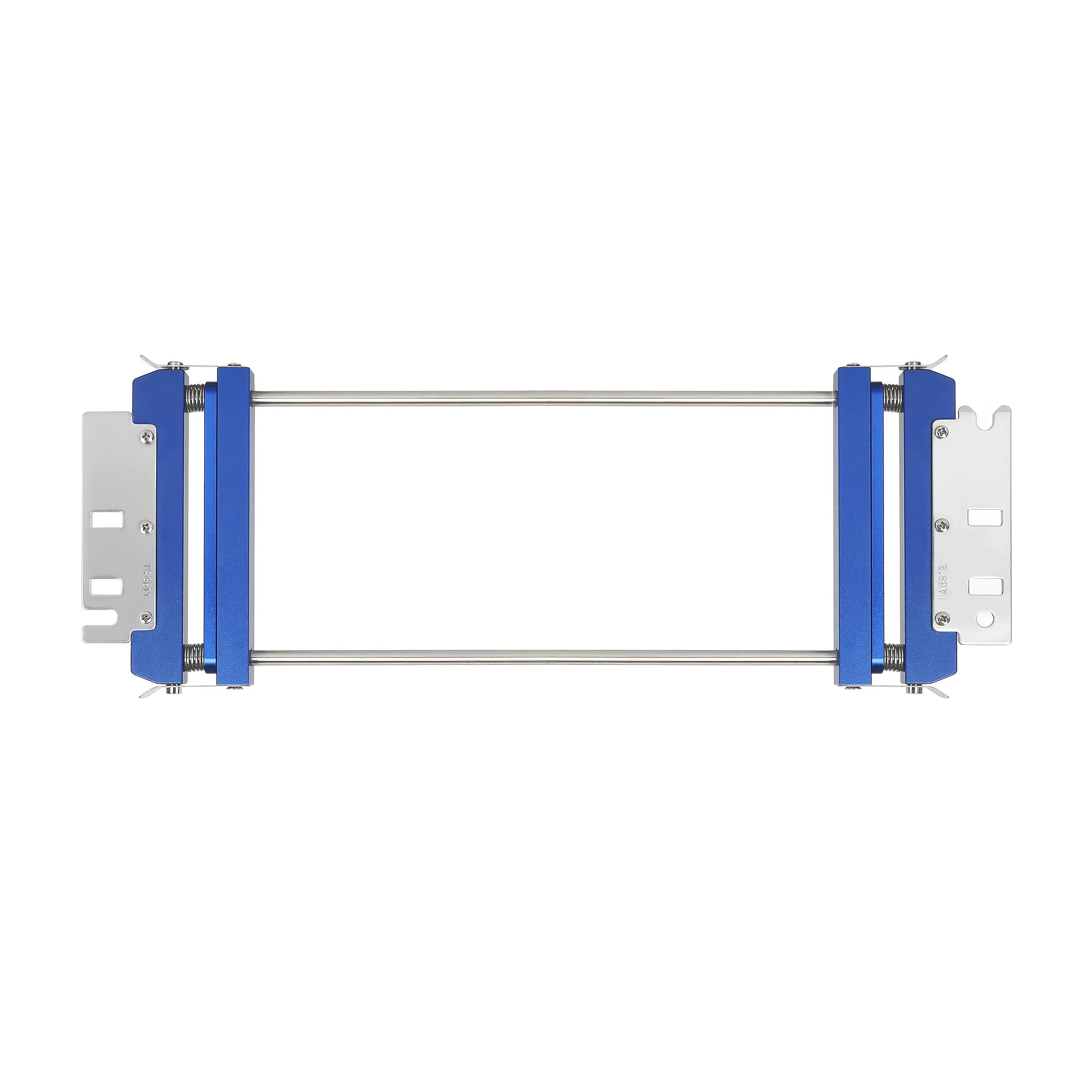

The Belt Hoop is purpose-built for narrow, long materials—belts, webbing, bag straps and dog collars—delivering clean alignment and quick repeat stitching.

Compatible Machines:

REDLINE embroidery machine models:

• INBC : INBC 1001S
• INB C : INB C-1201S, INB C-1210, INB C-1212, INB C 1501, INB C-1501S, INB C-1502, INB C-1503, INB C-1504, INB C-1506, INB C-1508
• IN-TB : IN-TB1206-4S


Best For:

Belts & sashes, nylon/poly webbing, camera/bag straps, pet collars (up to 65 mm / 2.6" width).

Key Features:

• Dual side rulers & center marks for precise placement and repeats
• Rigid metal brackets with quick clamp bars; stable hold, less fabric shift
• Slim profile reduces hoop burn and distortion on stiff webbing
• Drop-in install on your machine tubular arms; seconds to hoop

Specs:

• Model: BH-200 Embroidery Area: 65×200 mm (2.6×7.8")

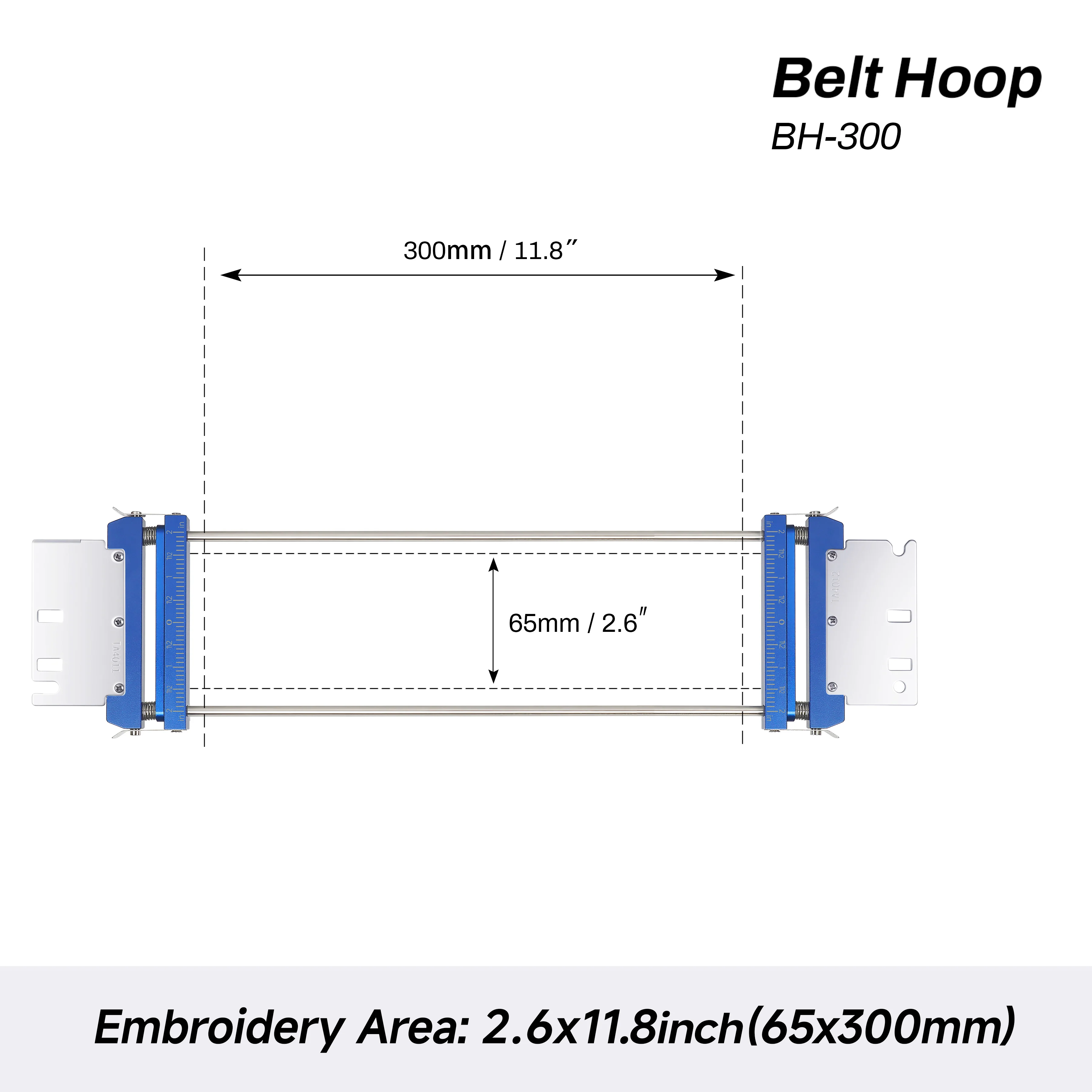

• Model: BH-300 Embroidery Area: 65×300 mm (2.6×11.8")
• Recommended Materials: webbing, leather belts (with proper needle/stabilizer)

Packing List

• Belt Hoop ×1 pcs
• Metal Bracket x1 pair
• Screws & Screwdriver×1 pcs (Note: Brackets will be matched according to your machine brand, and need to be assembled on hoop main part with screws)

Tips

Use tear-away or adhesive stabilizer; lower speed appropriately on thick webbing; test stitch before production.
